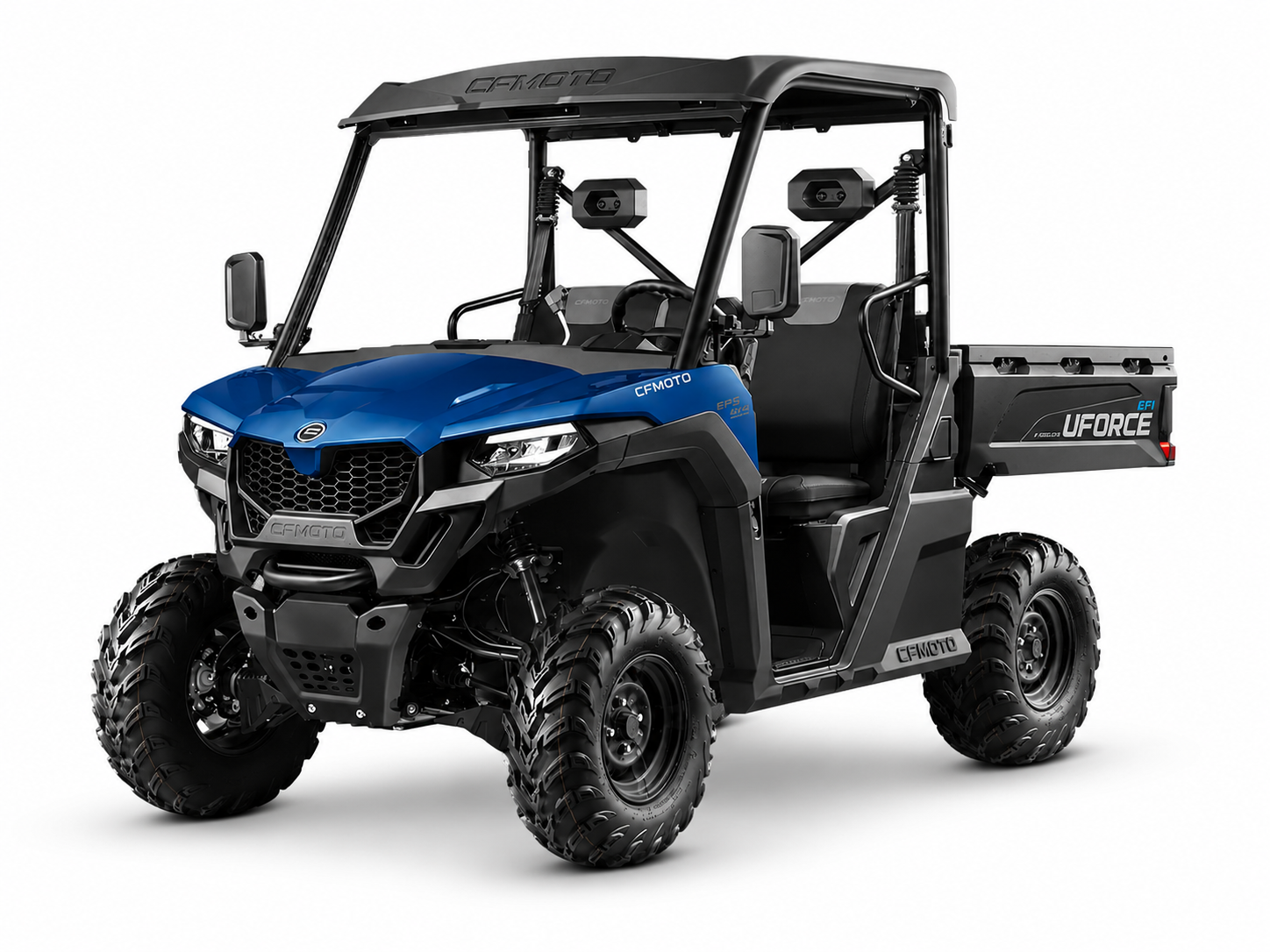

UFORCE 600 BASE
As the moniker suggests, the Base model is the no-frills part of the expanded U600 range, and will be only offered in one livery (blue).
It differs from the UFORCE 600 EPS in the following areas:
• It has steel wheels instead of alloy;
• It has halogen lights instead of LED;
• There’s no electronic power steering;
• The rear differential is fixed instead of a limited-slip design; and
• It doesn’t have a winch.
Otherwise, the Base still has all the UFORCE 600 features such as the roof kit, electronic engine braking, multiple drive modes, LCD screen, ROPS-approved cage, nearly 100 litres of storage, 960kg of towing/carrying capacity, and a newly designed bench seat.
The 580cc, liquid-cooled, fuel-injected, SOHC, single-cylinder engine also continues to operate at full mast: 41hp (31kW) at 6250rpm and 62Nm at 4750rpm.
UFORCE 600 FEATURES
41 hp, 580cc single cylinder, liquid cooled, Bosch EFI, 4 stroke engine
Canadian CVTech Transmission
Electronic hill decent control
Selectable 2WD/4WD
Push button locking front differential
Front and rear dual A-Arm independent suspension
All 4 wheel hydraulic disc brakes
12 inch steel wheels
25 inch INNOVA tyres with 6 ply rating
Bench seat with driver seat adjustability
96 litres of in cab storage
35 litre fuel tank
Large gas assisted tipping cargo tray
CFMOTO roof kit
680 kg tow capacity
250 kg rear tray carrier capacity
Tow package, indicators, horn and side mirrors
Available in Blue
2 Year Warranty
SPECIFICATIONS: UFORCE 600
ENGINE & TRANSMISSION
Type: Four-stroke, liquid-cooled, four-valve, SOHC single-cylinder
Displacement: 580cc
Maximum power: 41hp (31kW) at 6250rpm
Maximum torque: 62Nm at 4750rpm
Fuel system: Bosch electronic fuel-injection
Transmission: Canadian CVTech
Drive: H-L-N-R-Park
Drive modes: Normal/Work
4WD: 2WD/4WD with locking front differential and fixed rear differential
Steering: Non-electronic power steering
SUSPENSION & BRAKES
Front: suspension: Double A-Arm, independent
Rear suspension: Double A-Arm, independent
Shock absorbers: Five-position preload
Brakes: Hydraulic disc brakes
Wheels: 12-inch steel
Tyres: 25-inch
DIMENSIONS
L x W x H: 2820mm x 1470mm x 1950mm
Wheelbase: 1950mm
Ground clearance: 270mm
Dry weight: 570kg
LOAD
Towing capacity: 680kg
Payload capacity: 410kg
Persons: Two
Fuel capacity: 42 litres
BUSINESS END
Livery: Royal Blue
Warranty: Two years
